MoonGlo Machine/Vehicle Mount Packages?
MoonGlo Balloon lighting on any compatible mount adds 360 degrees of glare-free light to mobile utility vehicles or heavy equipment in minutes.

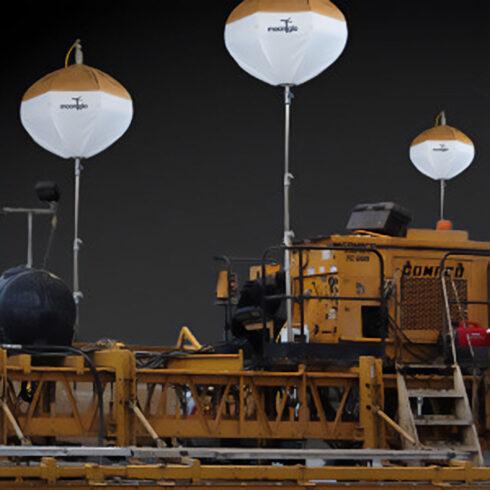

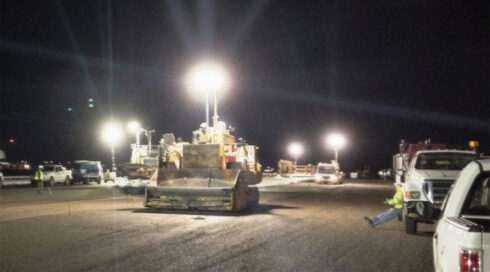

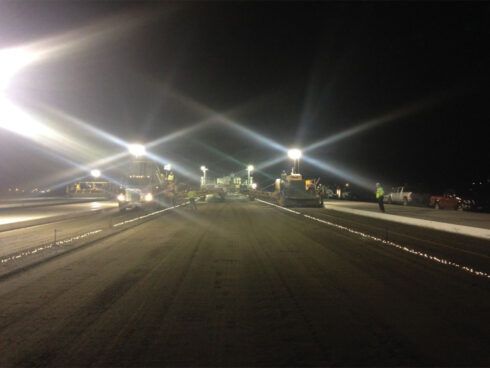

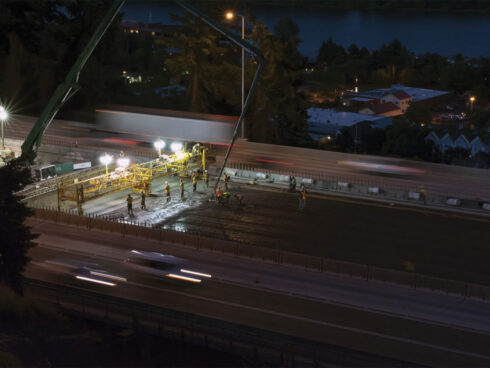

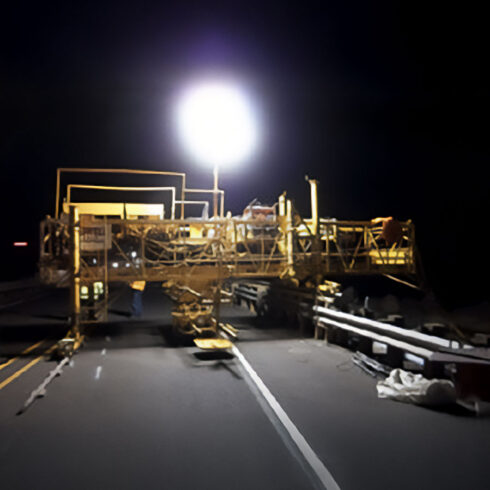

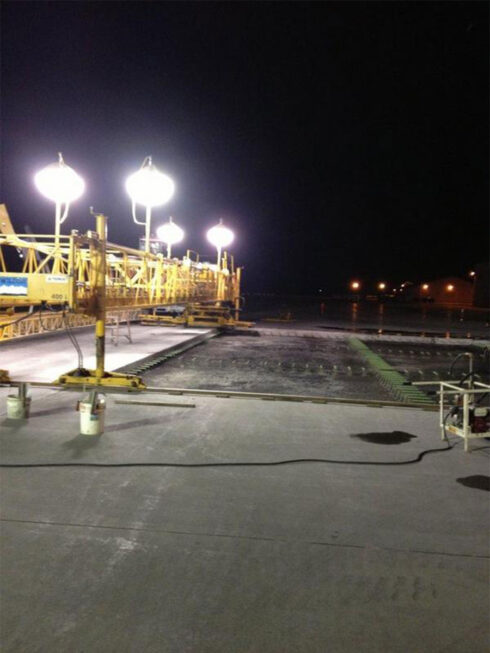

Our machine mount balloon lighting system was designed for the construction industry and is ideal for paving machines, emergency response vehicles or utility trucks. Add safety with visibility through 360 degrees of glare-free light to any mobile utility vehicle or paving equipment in minutes. The 4-stage telescoping mounting pole measures 48 inches collapsed and has an adjustable height range of 13 feet.
Also available in 300 watt LED. LED is an ever-changing science, and expect possible higher wattage in the near future. Info and Specs for MH and LED is shown below.
Common Uses
Asphalt and concrete paving machines, skidsteer loaders, rollers, brooms, excavators, utility trucks, emergency response vehicles, etc.
Compatibility
- MoonGlo balloon lights are interchangeable with all of our mounting systems.
- The same MoonGlo Balloon Light used on your paving machine can also be used on a MoonGlo Tripod System or on a portable light tower equipped with a MoonGlo Balloon Light Tower Conversion.
- The MoonGlo Work Light Machine Mount is simple and takes minutes to set up and take down.
- Being able to quickly adapt your work zone lighting to your needs requires versatility — every work zone benefits from versatility.
Recommendation
Use a Spring Mount adapter on any piece of equipment that will be working around cables, trees, curbs, etc. Basically, if your operator likes to drive like they're in a tank, get one.
MoonGlo Contractors Light Machine Mounts
MoonGlo Contractors Cylinder Lights are also available in equipment, machine, and vehicle mounts. Designed for the construction industry, Contractors Lights are ideal for added safety with visibility through 360 degrees of glare-free light. Custom designed for skid-steer track loaders, rollers, brooms, excavators, loaders, reach forklifts, and just about anything you can think of. The smaller design of Contractors Cylinder Lights allows for easier installation and placement. If we do not have the specific mounting bracket, we will fabricate it. Please call to discuss.
- Set up or take down in just minutes
- Great 360-degree glare-free temporary lighting
- 300 watt LED, 120 volt, 3 amps
- Will run off a 500-700 watt inverter (not included)
- All stainless framework. Light cage is 9" in diameter, 19" long, total length 27.5"
- Includes MoonGlo's unique shock absorption damper mount
-
Rugged construction that has proven extremely durable under normal operation
-
3 year limited warranty
- Many mounting adapters available

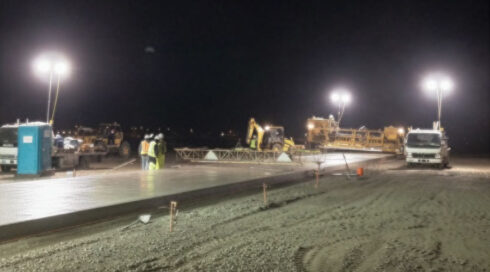

Example Machine Mount Installation

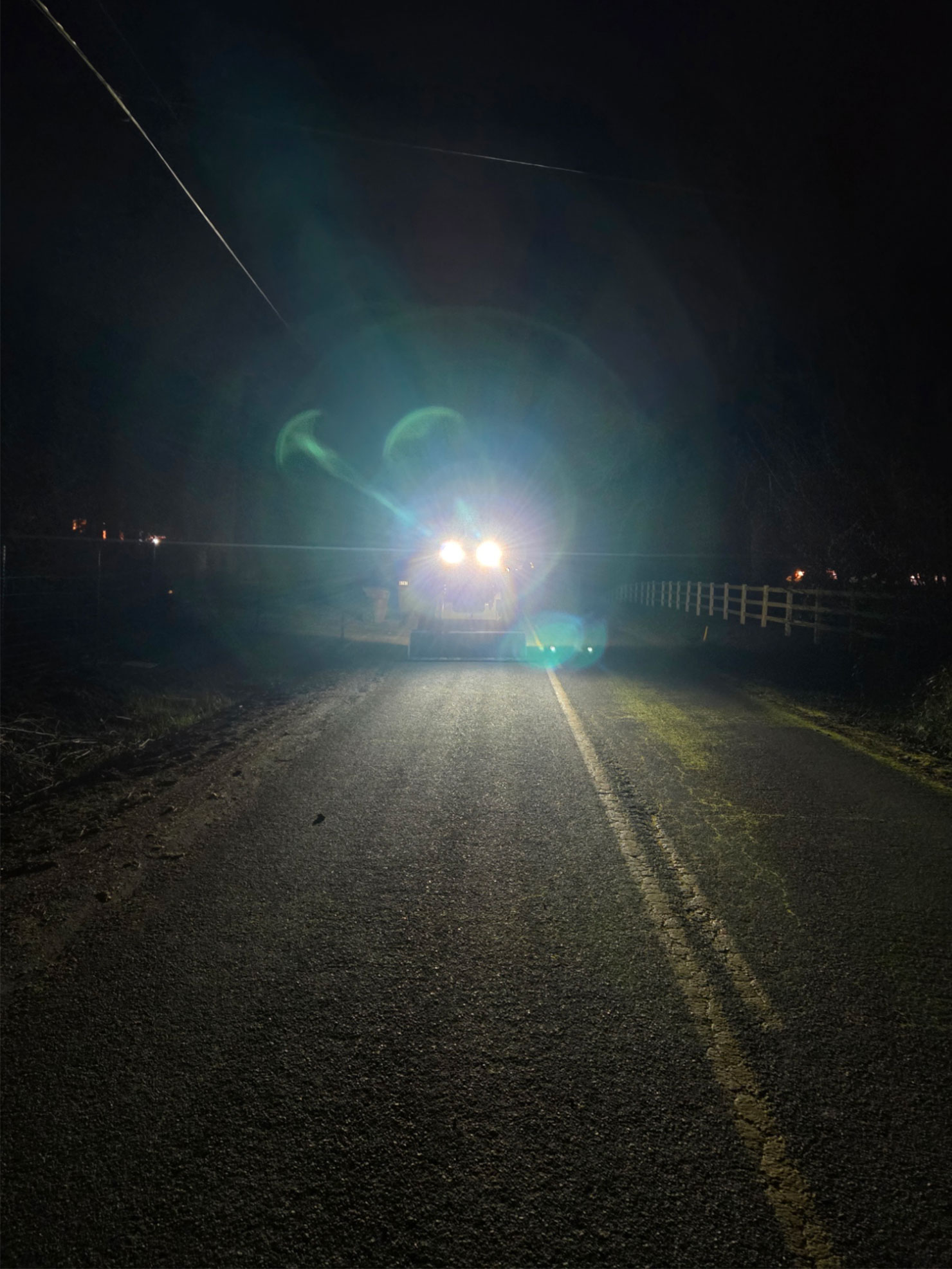

Caterpillar track loader with standard floodlights

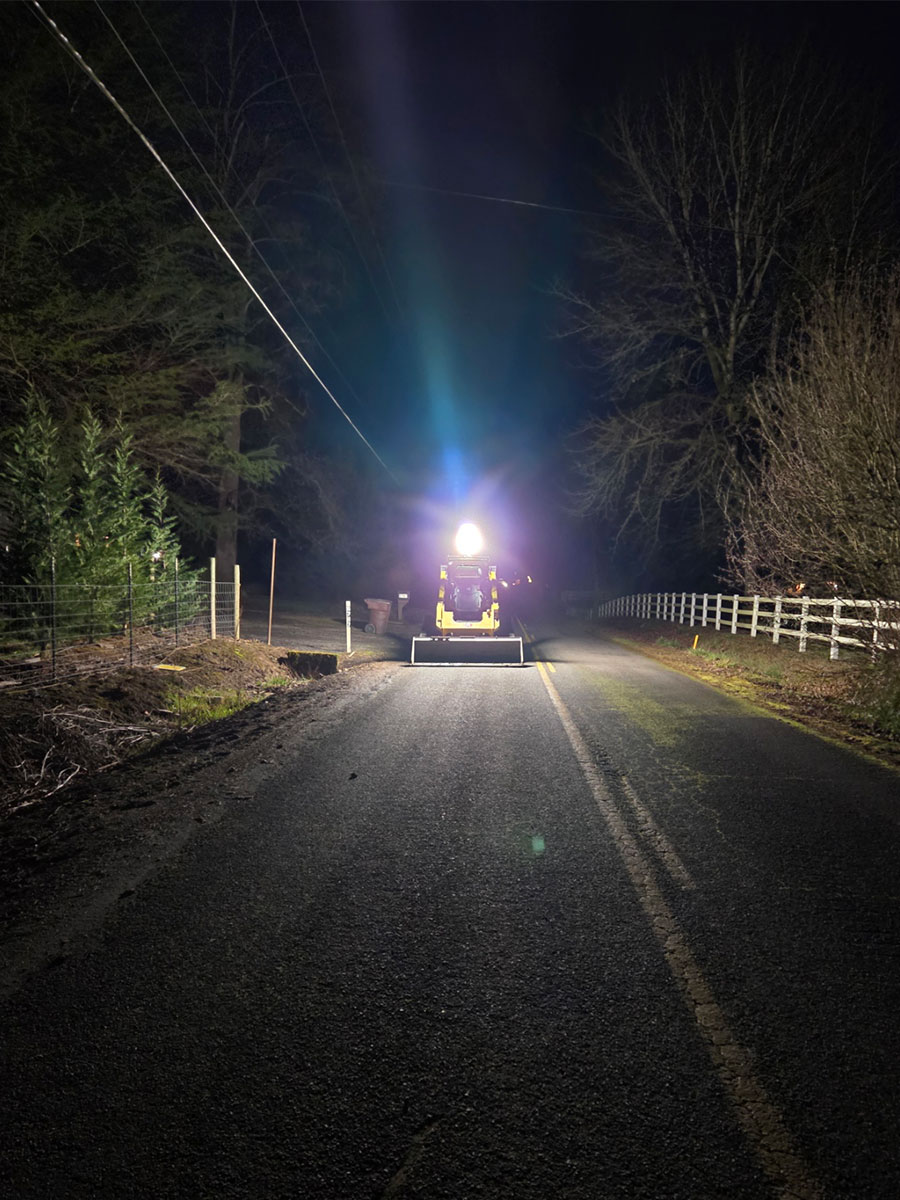

Caterpillar track loader with machine mounted Contractors Light

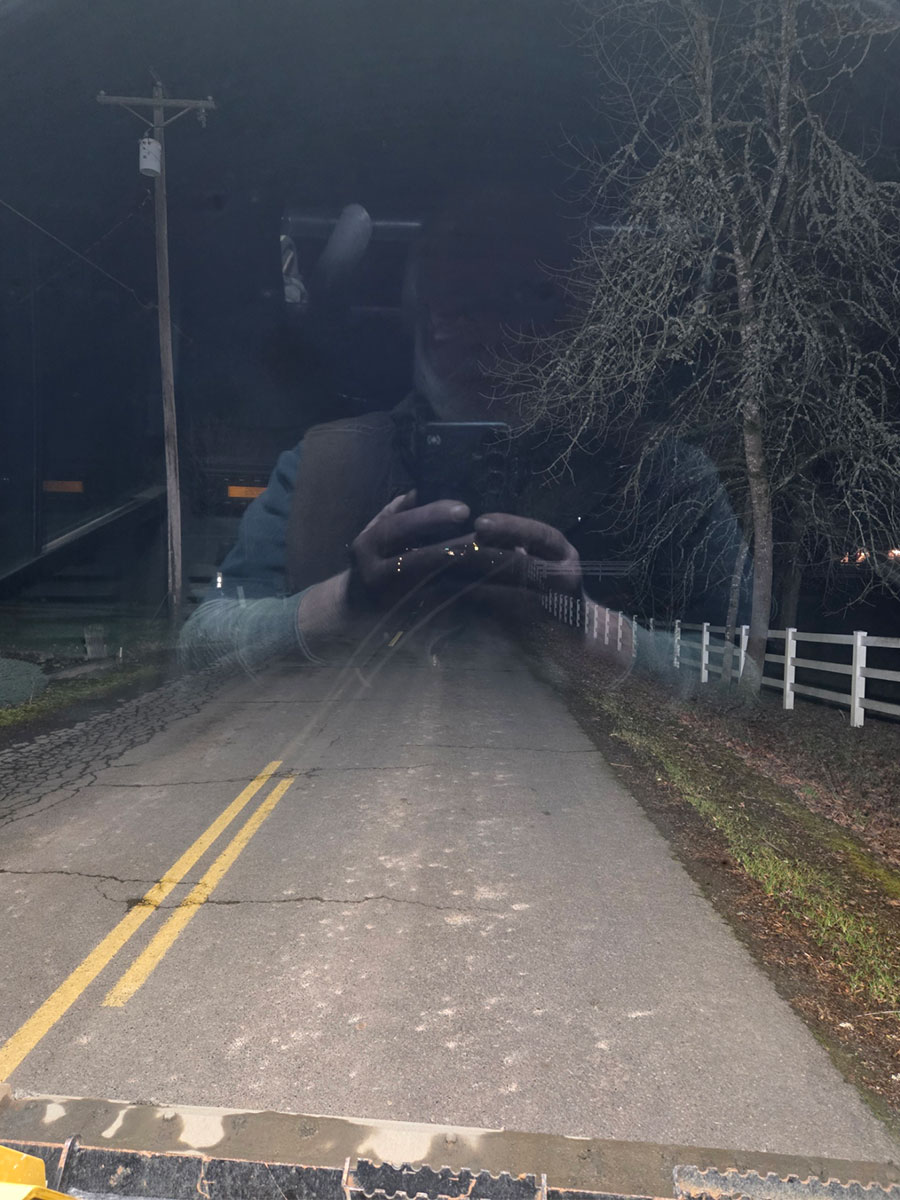

Operator view with machine mounted Contractors Light
Machine/Vehicle Mount Packages

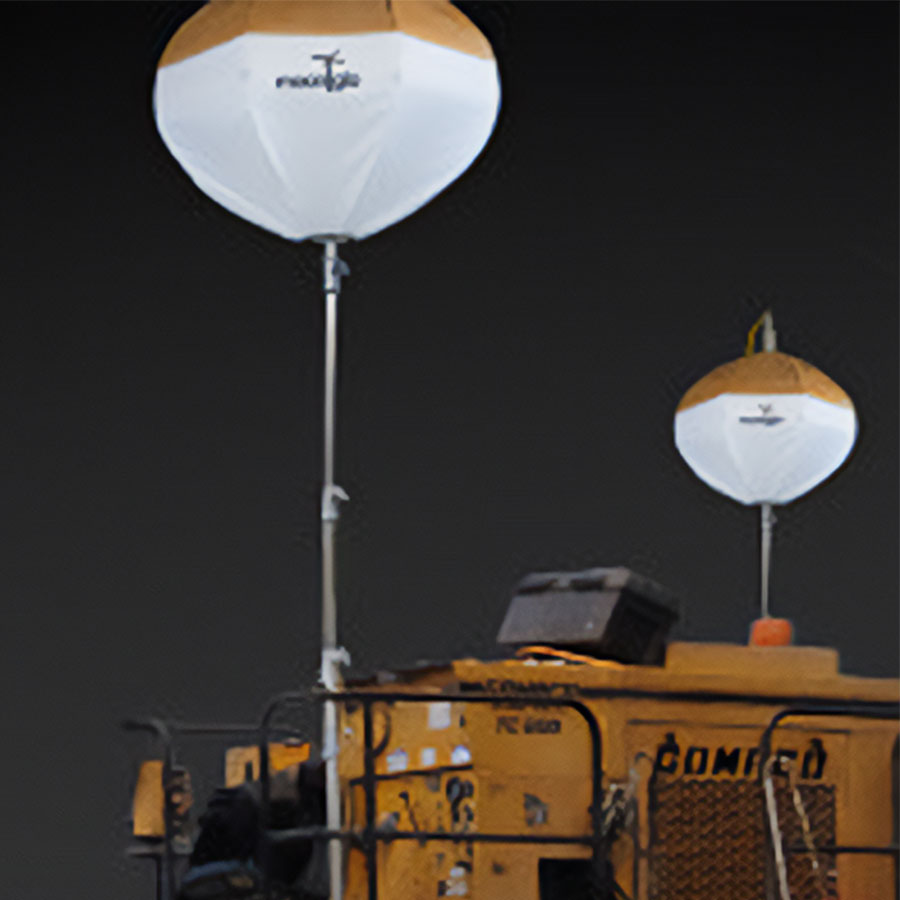

METAL HALIDE MACHINE/VEHICLE MOUNT PACKAGE
- MoonGlo Work Light 1000 watt Metal Halide
- 4-Stage Telescoping Mounting Pole
- Remote Ballast 1000 watt 8.6 amps
- Light Storage Bag
- 3 Year Limited Warranty
- Pole mounting brackets available. Call to discuss.
Pole Height Range: 49.5"-166" (13'10")
Telescoping Mounting Pole: Chromed Steel
Power: 120 volt, 8.6 amp draw. Machine must have onboard AC power or use generator.
Lighting Output: 1,000 watt, 115,000 Lumens Initial (new bulb)
Performance at 12' Center of Light — Radius (Foot Candles): at Base (98), 10' (41), 30' (6), 60' (2)
MPN: MG-MMPK-MH
PRICE: $3,363.00 with Storage Bag

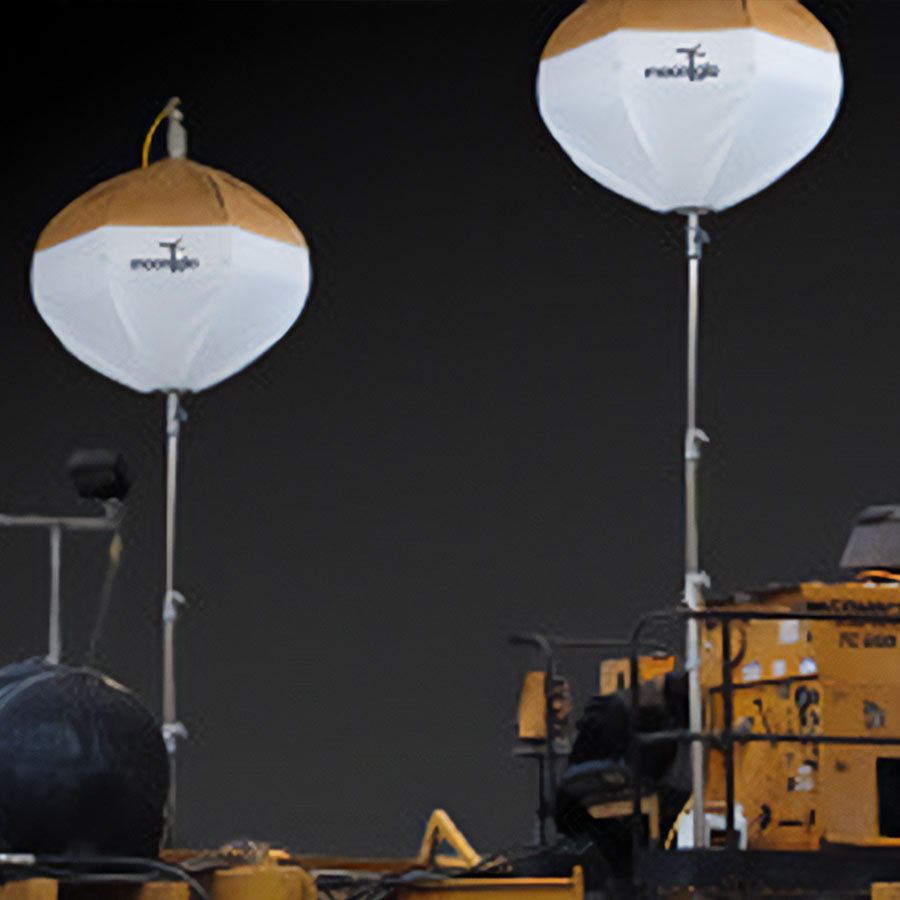

LED MACHINE/VEHICLE MOUNT PACKAGE
- MoonGlo Work Light 300 watt LED Screw-in Lamp
- 4-Stage Telescoping Mounting Pole
- Light Storage Bag
- 3 Year Limited Warranty
- Pole mounting brackets available. Call to discuss.
Pole Height Range: 49.5"–166" (13'10")
Telescoping Mounting Pole: Chromed Steel
Power: 120 volt, 3 amp draw. Machine must have onboard AC power or wire in inverter.
Lighting Output: 300 watt, 43,000 Lumens Initial
Performance at 12' Center of Light — Radius (Foot Candles): 10’ (41), 20' (11), 30' (6), 40' (4)
MPN: MG-MMPK-LED
PRICE: $3,563.00 with Storage Bag

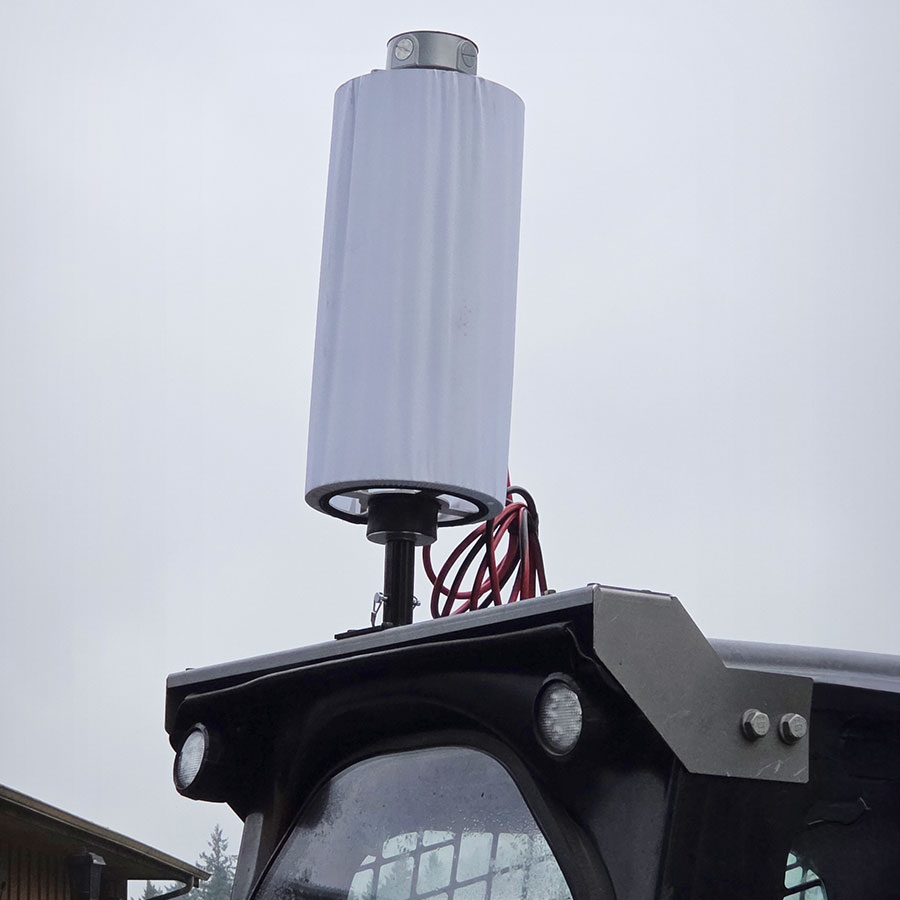

LED CONTRACTORS CYLINDER LIGHT – MACHINE MOUNT
- Set up and take down in minutes.
- Mounting brackets for any machine — skid-steer track loaders, brooms, rollers, excavators, profilers, cranes, wheel loaders, service trucks, etc.
- We can fit it to your machine. If we don’t have a mount for your specific model, we will fabricate one.
- Built-in vibration absorption and cab shield.
- All stainless steel frame.
Lamp Option: 300 watt LED screw in lamp (replacement lamps can be purchased anywhere)
Specifications: 43,000 Lumens, 120volt, 3 amps, instant on, 25' Power Cord, 28" long by 9" diameter overall light dimensions
Power: 120 volt, 3 amp draw. Machine must have onboard AC power or wire in inverter.
Light Performance: @ 12' Center of Light
Radius (Foot Candles): At Base (15), 10' (9), 15' (5.5), 20' (3.5), 25' (2.5), 30' (1.7)
All meter readings in foot candles are taken from waist height with no other light present.
Additional light output charts are available for different heights and further distances upon request.
MPN: MG-CONT-MM-LED
Price: $1,715.00 with Storage Bag
NOTE: No Sales Tax – Oregon businesses do not charge or collect state sales taxes.
Optional Machine Mounts

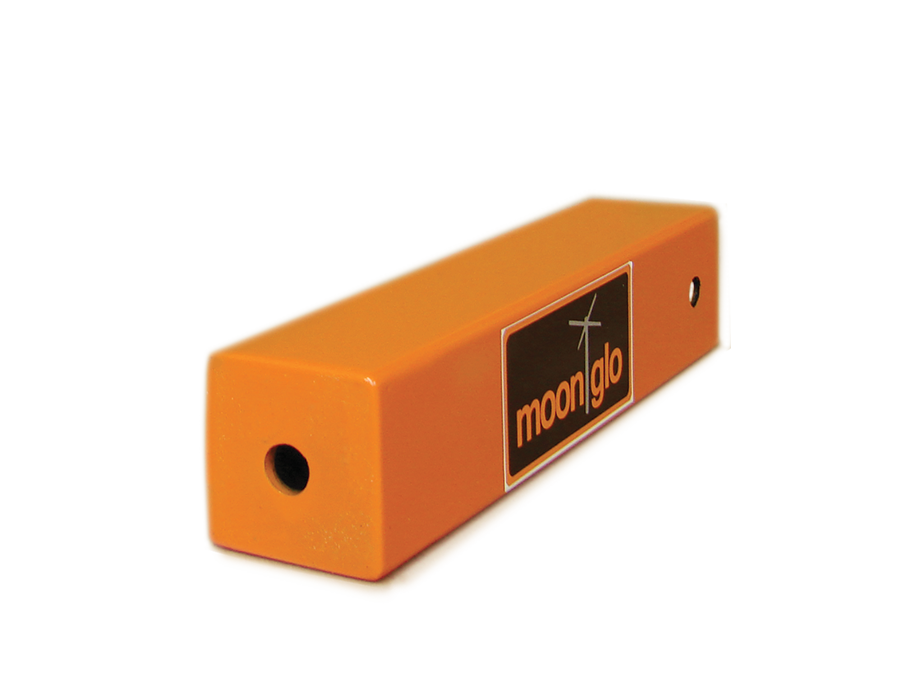

STEEL MACHINE MOUNT ADAPTER
- Receiver for MoonGlo Telescoping Light Pole
- 2" x 2" x 9"
- No spring attached
MPN: MG-POLERECEIVER
Price: Please call for pricing and more info

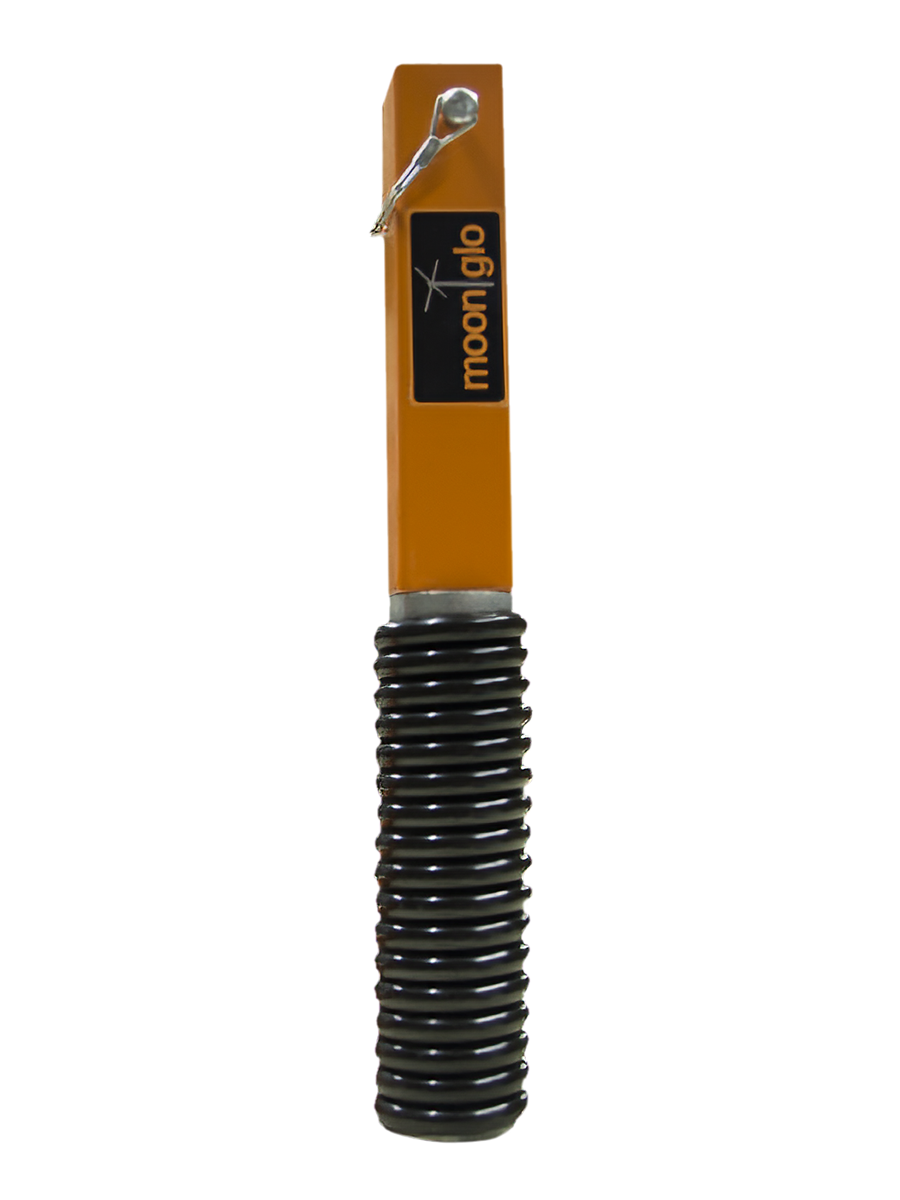

STEEL SPRING MOUNT ADAPTER
- Receiver with Spring for MoonGlo Telescoping Light Pole
- Safety Lock Pin for Telescoping Pole
- Grade 8 Fasteners
MPN: MG-SPRINGMT
Price: Please call for pricing and more info

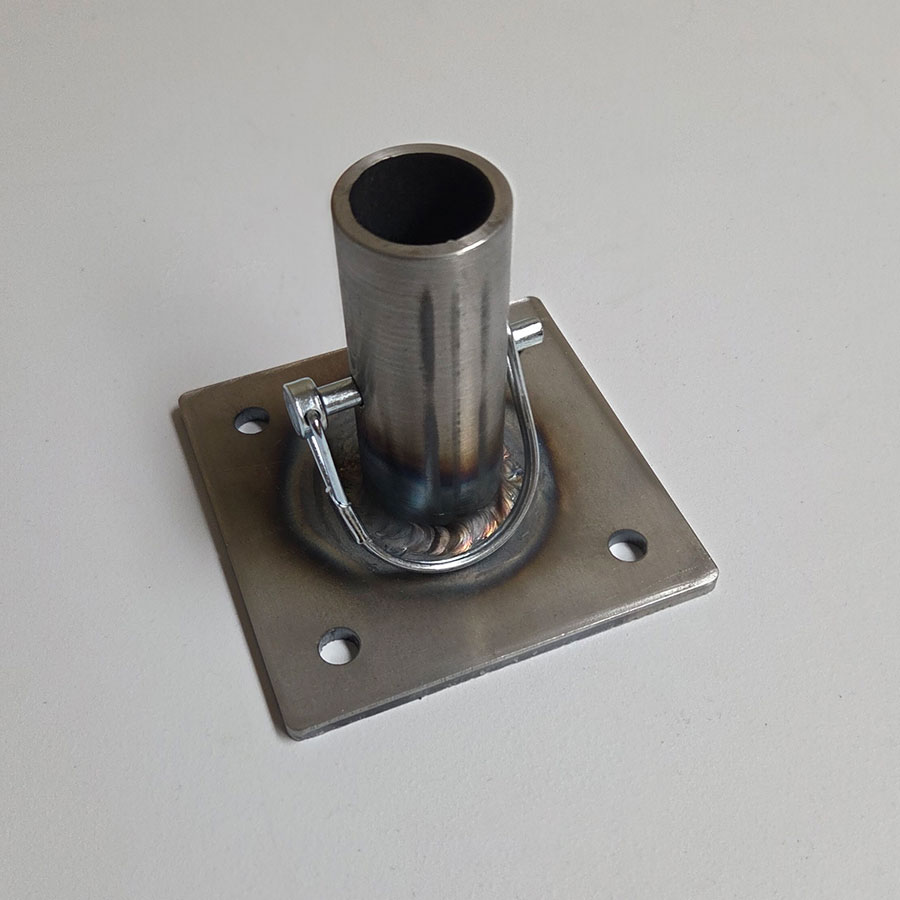

STANDARD MOUNT BASE
For: Contractors Light
Base: 4" x 4"
Height: 3.5"
MPN: MG-BSMB
Price: Please call for pricing and more info

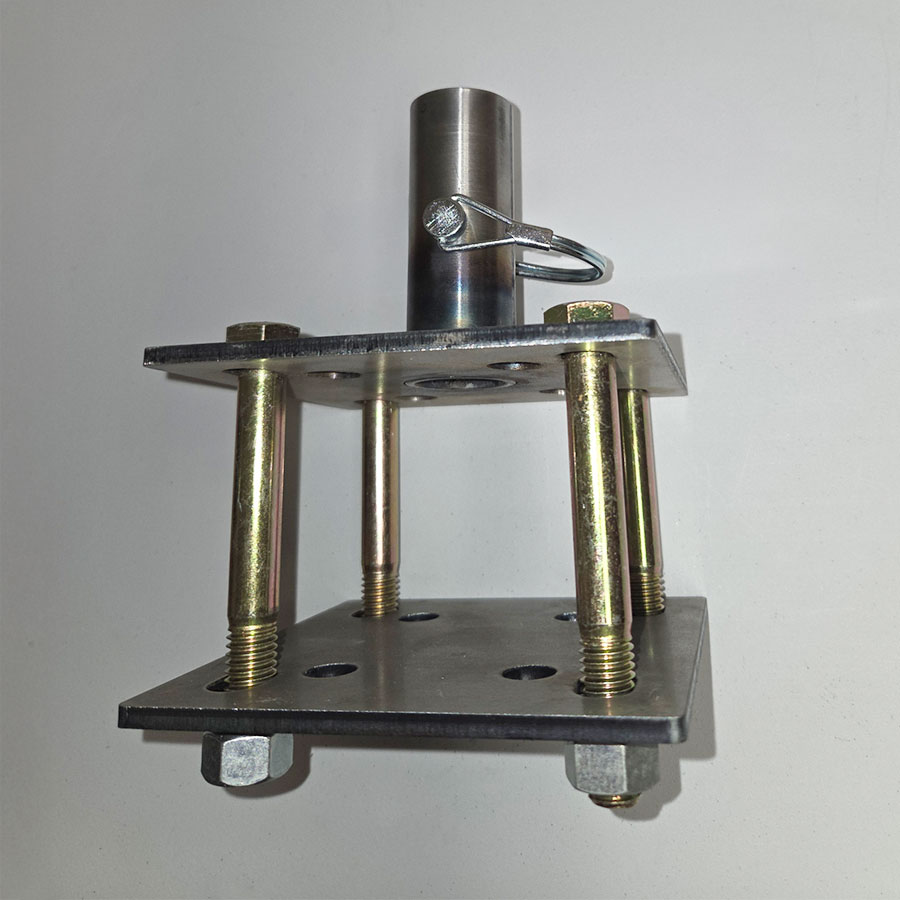

ROLL BAR CLAMP & MOUNT BASE
For: Contractors Light
Standard Fits: 2", 2.5", and 3" square or rectangular tube
Large Fits: 4" square, rectangular tube, or channel
MPN: MG-RBCM-STD
MPN: MG-RBCM-LGE
Price: Please call for pricing and more info

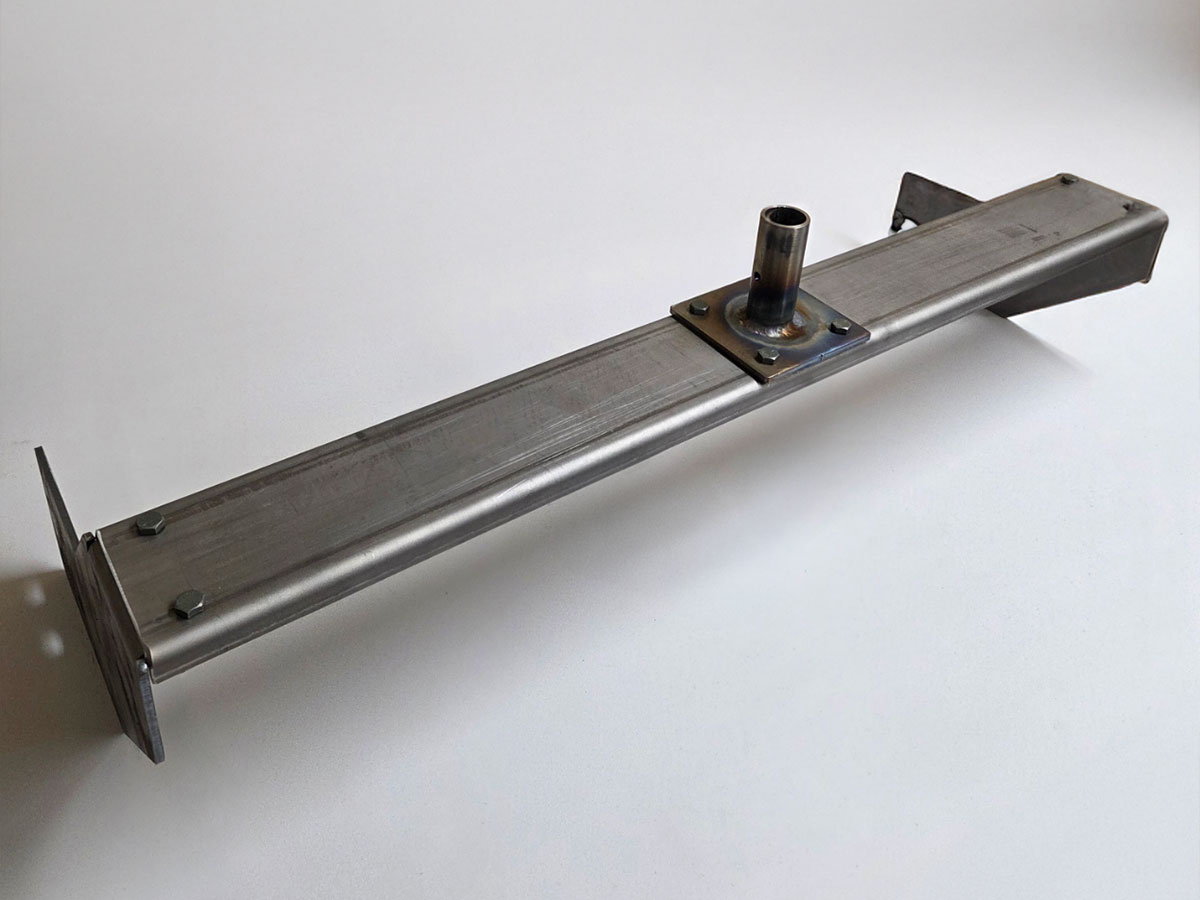

SKID-STEER TRACK LOADER BRACKET
- For: Contractors Light
- Fits Caterpillar Skid-steer Track Loaders
- Bolts right on — no drilling or threading
MPN: MG-CATSTLBRK
Price: Please call for pricing and more info
EXCAVATOR BRACKET
- COMING SOON!
NOTE: No Sales Tax – Oregon businesses do not charge or collect state sales taxes.
Optional Hitch Mounts

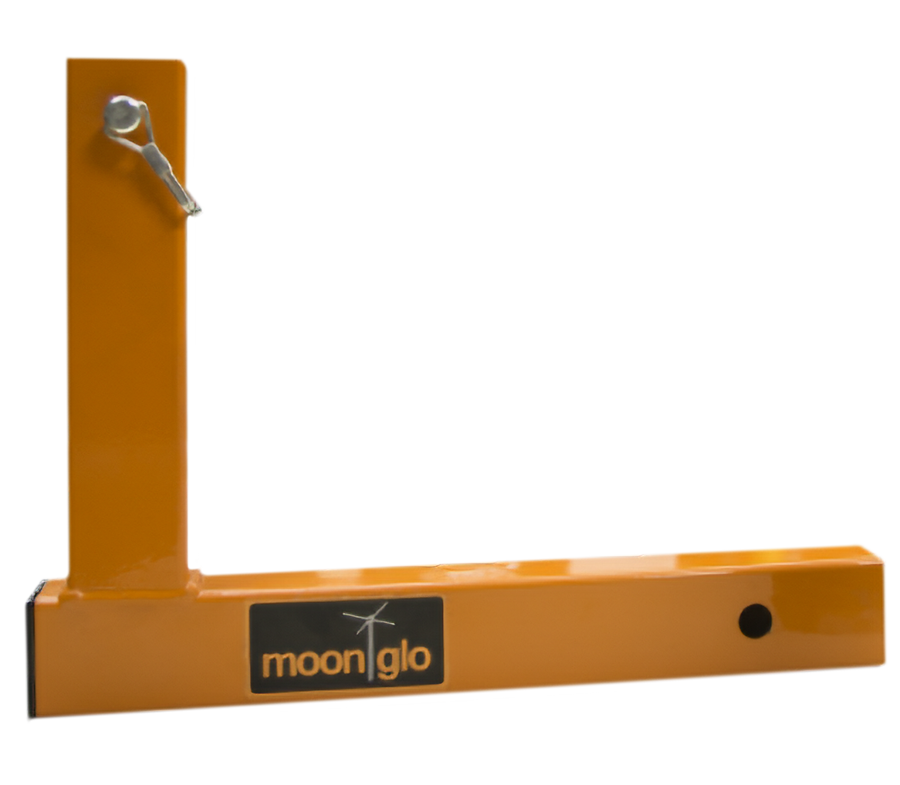

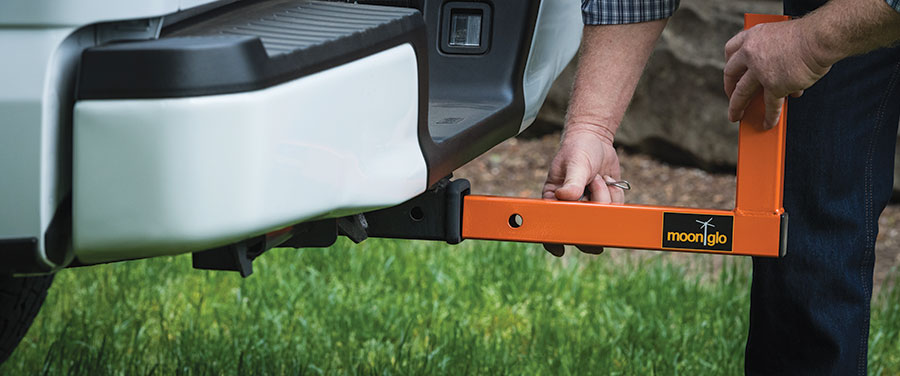

2" x 14.5" HITCH MOUNT ADAPTER
- 2" x 14.5" Tow Hitch Mount
- Safety Lock Pin for Telescoping Pole
MPN: MG-HTCH
Price: Please call for pricing and more info

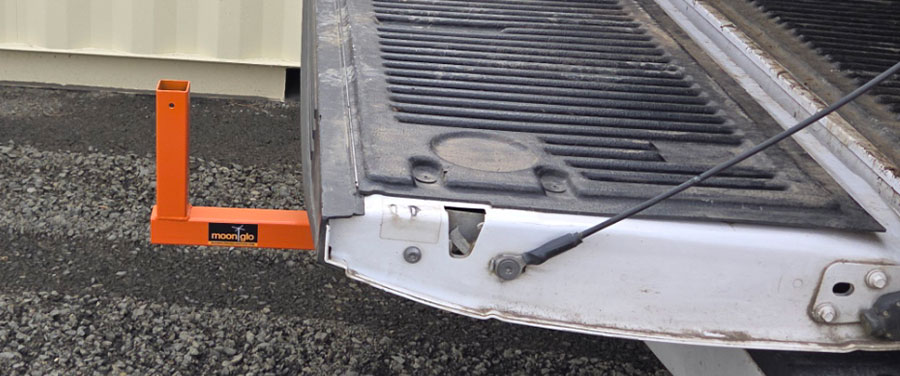

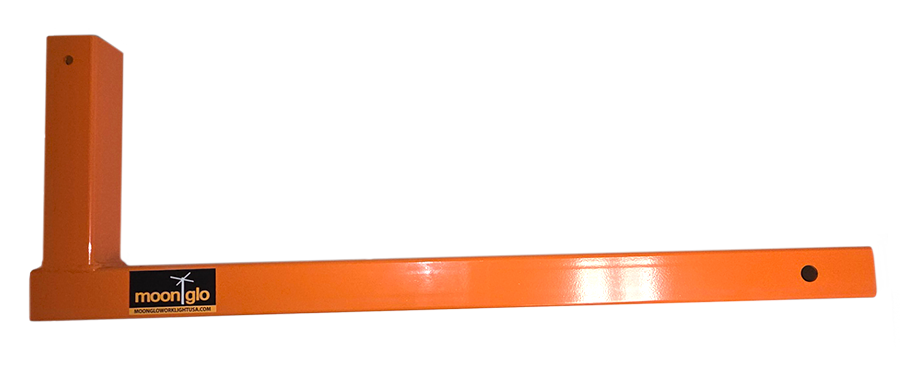

2" x 32" HITCH MOUNT ADAPTER
- 2" x 32" Long Tow Hitch Mount
- Allows Tailgate to Open
- Safety Lock Pin for Telescoping Pole
MPN: MG-HTCHLONG
Price: Please call for pricing and more info

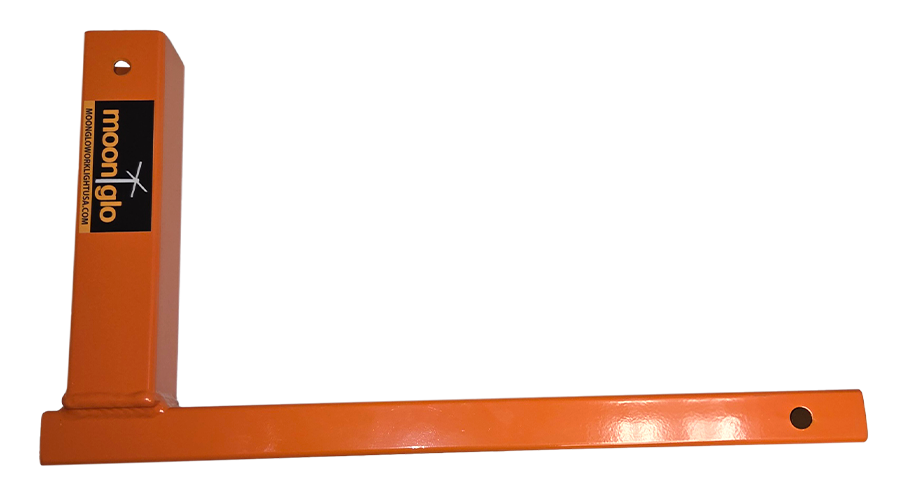

ATV HITCH MOUNT ADAPTER
- For 1/4" Hitch Receiver
- 19" Long
- 2" Receiver for Telescoping Pole
- Safety Lock Pin for Telescoping Pole
MPN: MG-HTCH-ATV
Price: Please call for pricing and more info
NOTE: No Sales Tax – Oregon businesses do not charge or collect state sales taxes.
Optional Accessories
4-3-2-STAGE TELESCOPING POLE
- 4-stage telescoping pole: 48"–156" (4'–13')
- 3-stage telescoping pole: 47"–120" (3'11"–10')
- 2-stage telescoping pole: 44"–81" (3'8"–6'10")
- Heavy duty chromed steel
MPN: MG-POLE4
MPN: MG-POLE3
MPN: MG-POLE2
Price: Please call for pricing and more info
HEAVY DUTY TRIPOD
Height Range: 49.5"–166" (4'3"–13'10"), 4-stage telescoping pole
Height (includes light): 91.5" (17'4"), maximum 14.5' center of light
Leg Base Spread: 50" triangle
Weight: 30 lbs
Leg Base: 50" triangle spread, adjustable for uneven terrain, chromed steel
MPN: PG-TRIPODHD
Price: Please call for pricing and more info
TRIPOD SADDLE SANDBAGS
- We highly recommend sandbags to weight down for windy conditions
- 3 per tripod recommended
- Sealable bags inside pouches for 20 pounds of sand
- Tripod and sand not included
MPN: MG-SNDBAG
Price: Please call for pricing and more info

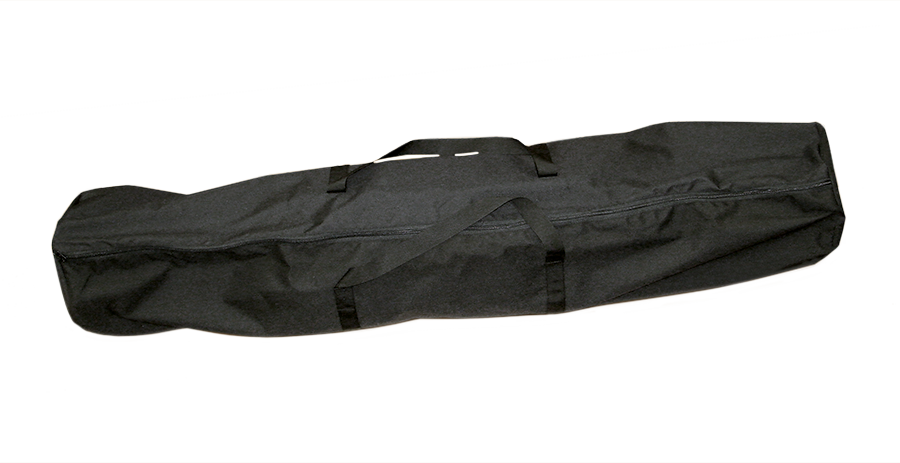

BALLOON LIGHT STORAGE BAG
- Black canvas
- Full-length zipper
- Included in tripod package pricing
- 60" long
MPN: MG-LHTBAG60
Price: Please call for pricing and more info

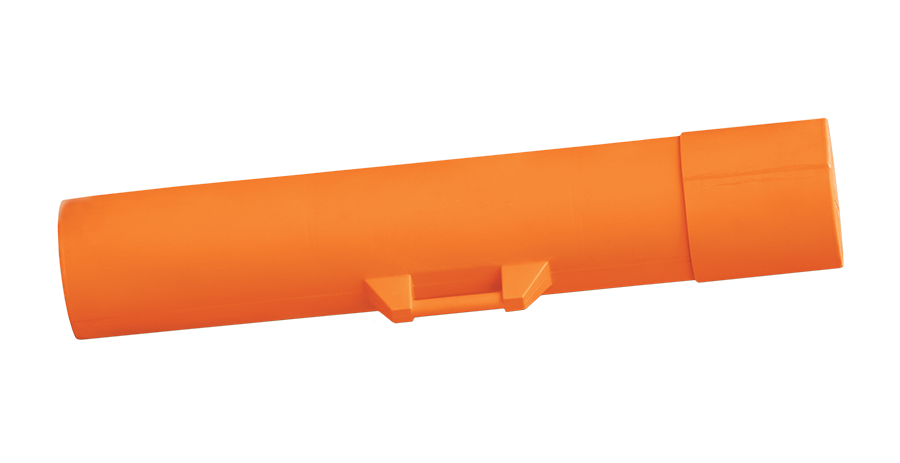

BALLOON LIGHT STORAGE TUBE
- Rigid tube with molded handle
- Protect your light from getting dirty and/or damaged
- 60" long
MPN: MG-LHTTUBE60
Price: Please call for pricing and more info
CONTRACTORS LIGHT STORAGE BAG
Diameter: 9"
Length: 33"
Features: Collapsible, Black, Full-length Zipper
MPN: MG-CLHTBAG33
Price: Please call for pricing and more info
CONTRACTORS LIGHT STORAGE TUBE
Protect your light from getting dirty and/or damaged.
Diameter: 9"
Length: 33"
Features: Rigid
MPN: MG-CLHTTUBE33
Price: Please call for pricing and more info
NOTE: No Sales Tax – Oregon businesses do not charge or collect state sales taxes.
Videos
Parts & Service
All MoonGlo parts are readily available and in stock. MoonGlo is always available to discuss your lighting needs. We have many years of experience with work zone/site equipment and event lighting.
Contact
Call 503-931-3650 or email MoonGloUSA@gmail.com for pricing and to discuss your lighting needs.
